Strobilanthes kunthianus











Strobilanthes kunthianus
Kurinchi

     Strobilanthes kunthianus, flowers gregariously over large tracts of mountain slopes, which used to look blue. In Sangam poems, this flower is mentioned as 'kurinchi'.



Plant Morphology

     The Plant 'Morphology', is the branch of Botany which is concerned with the structure of plants. There are two branches of morphology, external morphology and anatomy. External morphology has to do with the form, arrangement and relationship of the organs of the plants and with their structures in so far as they may be studied without cutting  the plant.

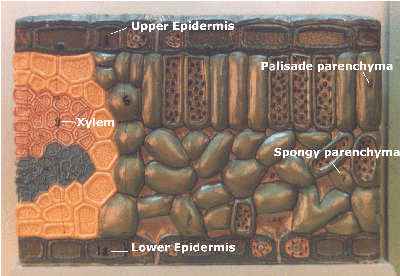

Cross-section of leaf

   A leaf is often referred as a food factory of the plant, as it is in this organ that the bulk of photosynthesis takes place. Leaves show a wide range of shapes and sizes. In the cross-section of a dicot leaf it shows the different parts of the leaf namely the epidermis which covers the upper surface (upper epidermis) and lower surface (lower epidermis) of the leaf. The epidermis is interrupted by a large number of openings called 'Stomata'. The tissue enclosed between the two epidermal layers is called the 'Mesophyll'. The mesophyll consists of 'Palisade parenchyma' and Spongy parenchyma. The vascular bundles i.e. the xylem and the phloem in the leaf are located in the midrib and the veins.



Cross - section of dicot leaf

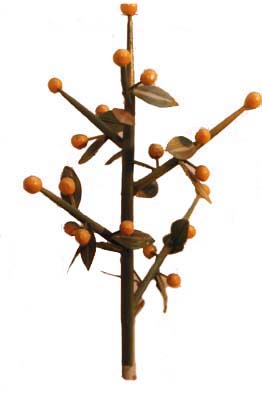

Panicle

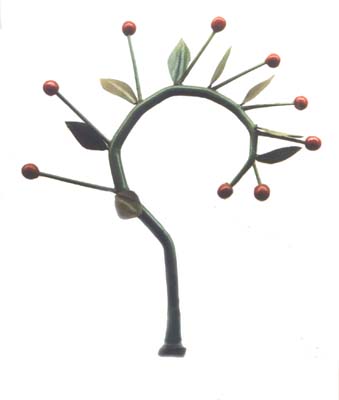

Helicoid cyme



Inflorescence

      The branch system of the floral region bearing a group of flowers is called 'Inflorescence'. Thus depending on the mode of branching different kinds of inflorescences have come into existance, and these may primarily be classified into two distinct groups, viz. 'Racemose' (or) indefinite and 'Cymose' (or) definite. The model of 'spike', 'panicle' in Racemose, and 'simple cyme', 'dichasial cyme', 'scorpioid cyme', 'helicoid cyme' in the Cymose are exhibited along with the model of the section of flower, pollination in salvia and fertilisation, fruits and seeds are displayed in the morphological show-case, in the Systematic Botany Gallery.



Morphology - II Inflorescence

   Flowers do not always occur singly. They are often borne in clusters. An axis bearing a cluster of flowers is known as 'inflorescence'. The flowers in an inflorescence are arranged acropetally (the lower (or) outer flowers being older) on the main axis which has limited growth it is called a 'Racemose' inflorescence. When the main axis is always limited in growth it ends in a flower and the subsequent growth of the inflorescence is carried out by axillary branches, then the inflorescence is called 'Cymose'. In a cymose inflorescence, the terminal flower is the oldest.

   The Panicle : This is only a branched 'Raceme'. The main peduncle gives rise to a number of secondary peduncles in an acropetal succession and the flowers arise on the secondary peduncles, or, the secondary peduncles may branch and the flowers arise on the tertiary peduncles.

   The Helicoid Cyme : It is a type of 'Cymose inflorescence'. Here the inflorescence is with one axis at each branching, produced by suppression of successive axis on the same side, thus causing the sympodium to be spirally twisted.
